Hennessey Venom F5-M Roadster Specs, Price, Features, Colors, Pictures & Reviews

The Venom F5-M Roadster is a limited-edition hypercar with a 1,817 HP engine and a manual transmission. Its extreme power and performance make it a coveted choice for those seeking the ultimate driving thrill. Only 12 units were produced, making it a rare and highly sought-after collectible.

Rate Hennessey Venom F5-M Roadster:

3.8/5 (6 votes)

Write a Review

Hennessey Venom F5-M Roadster Price

Not Available

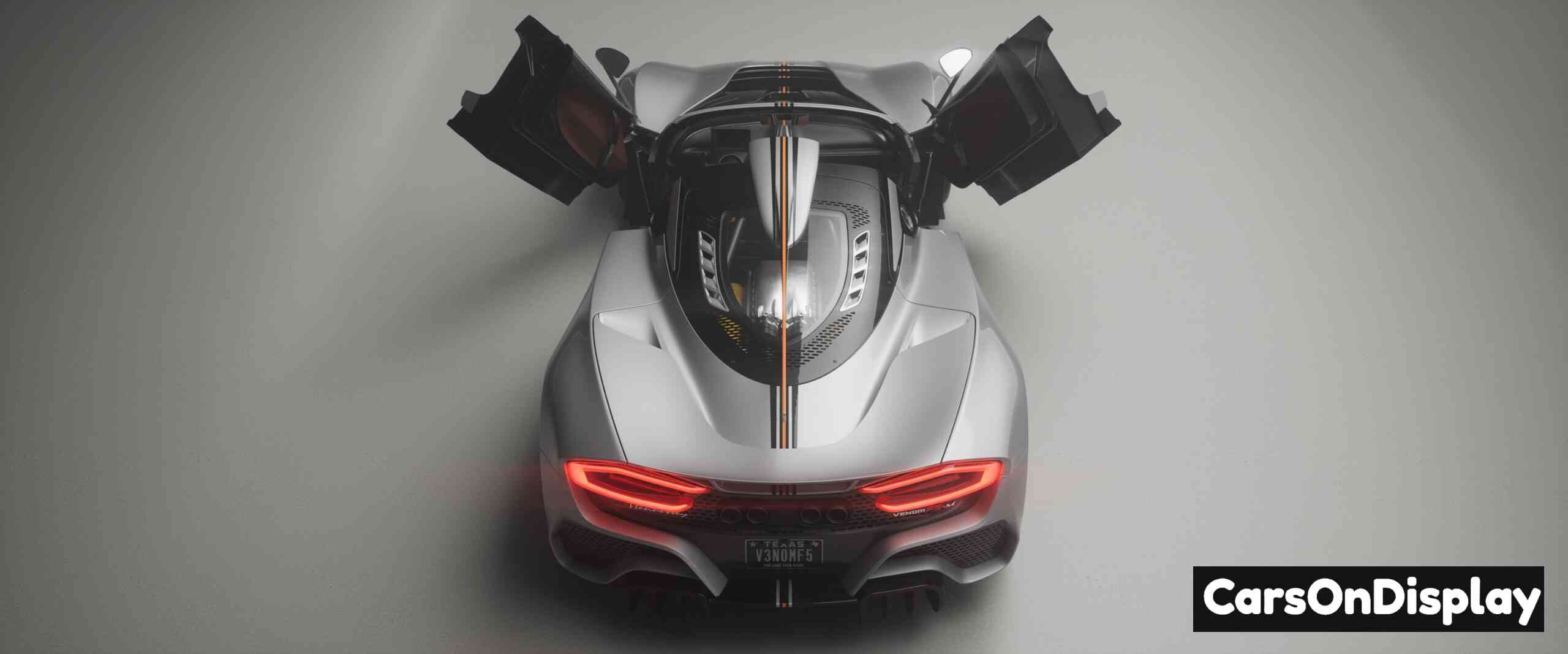

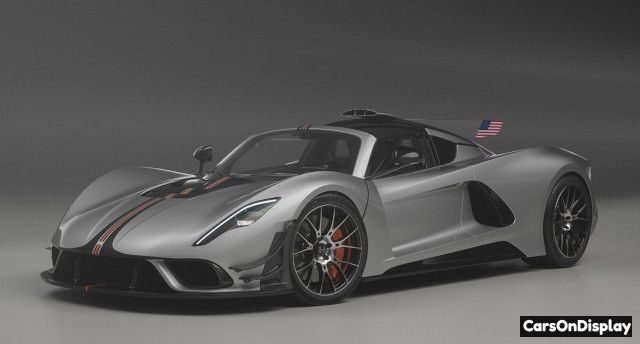

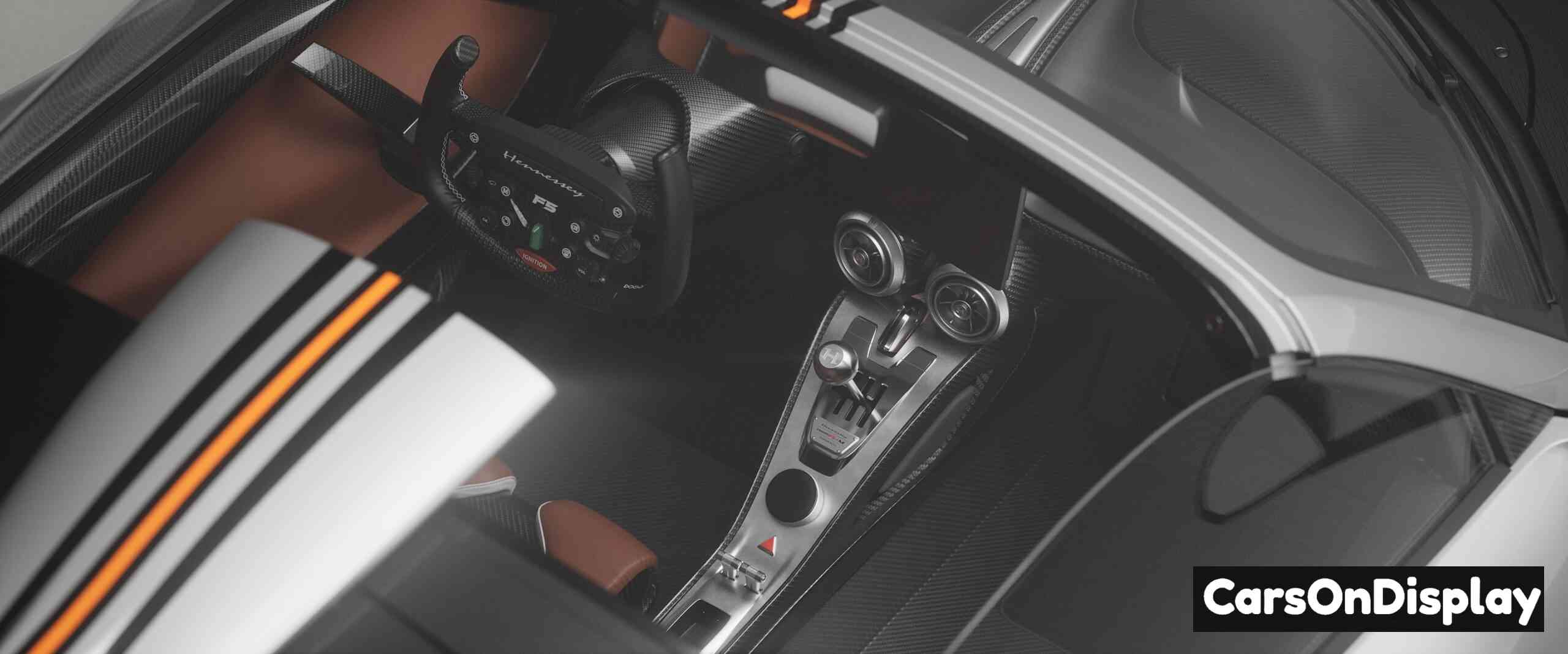

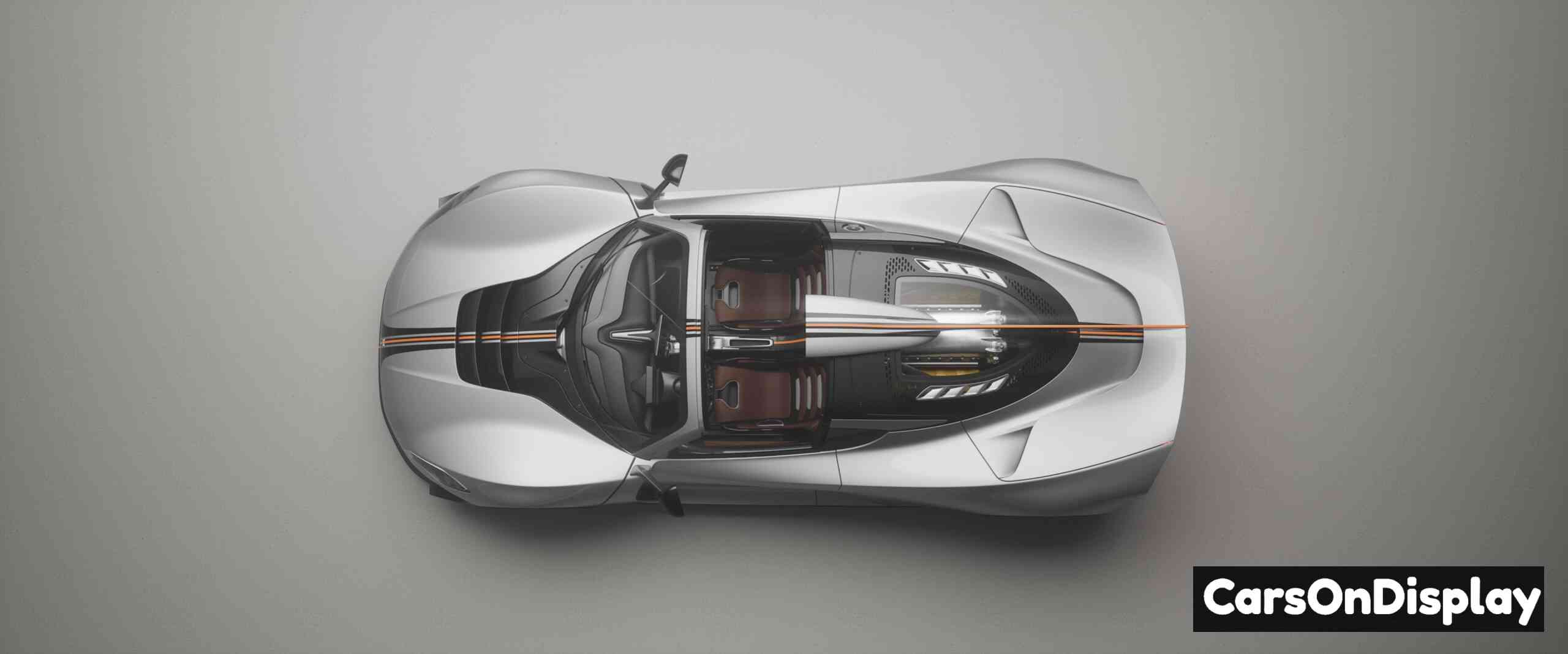

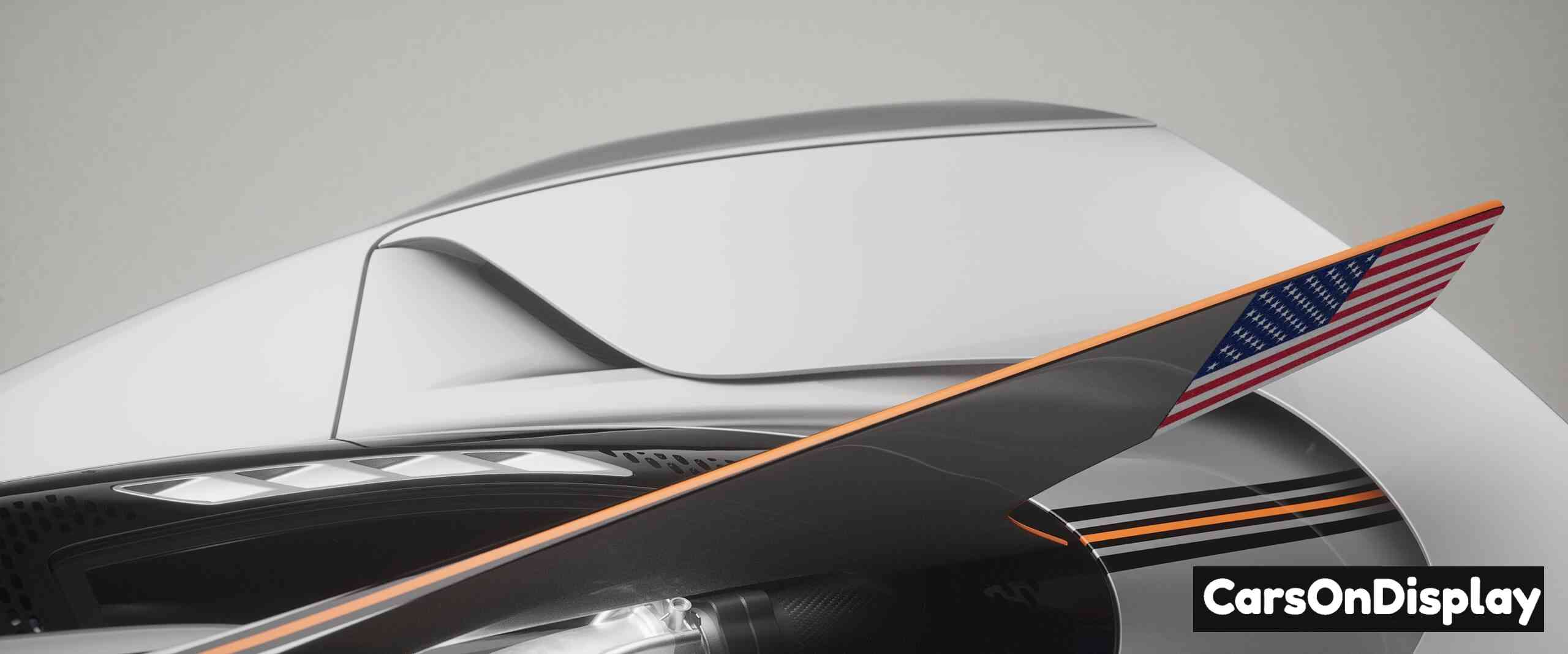

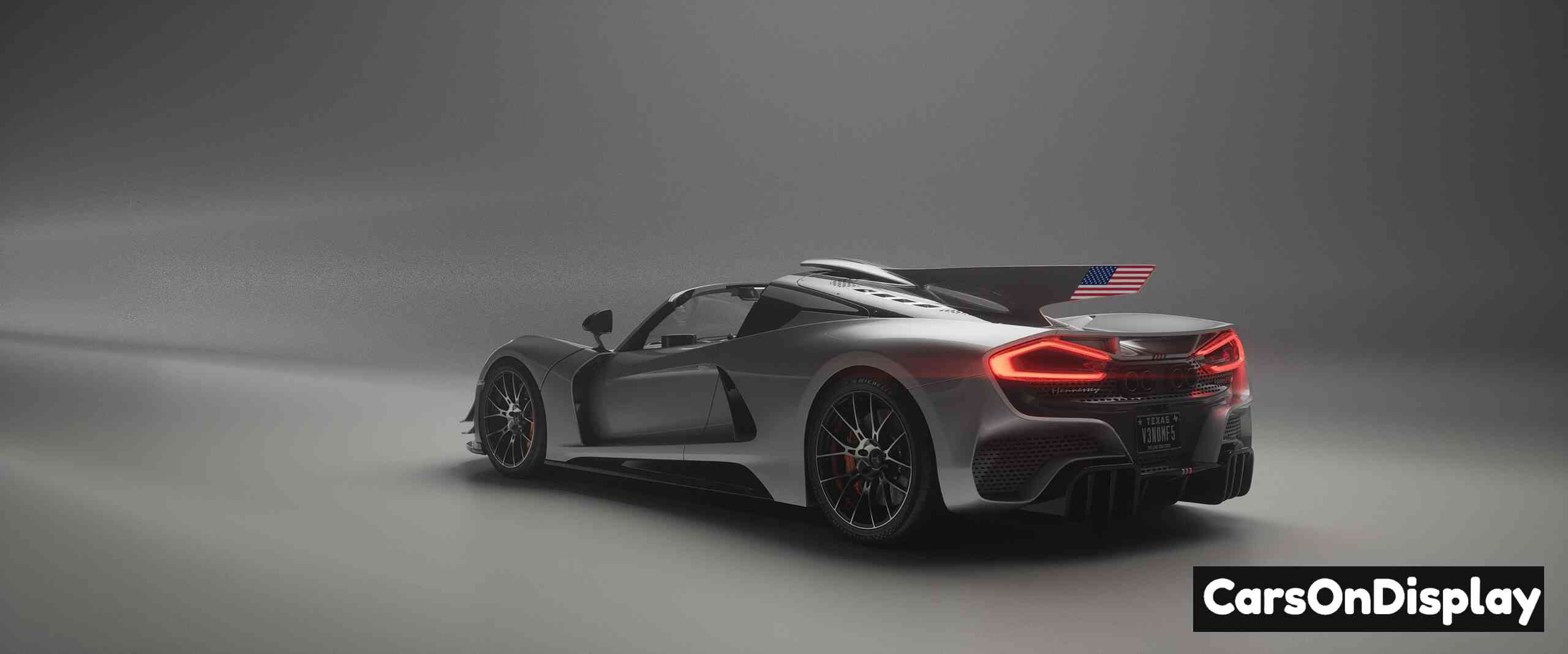

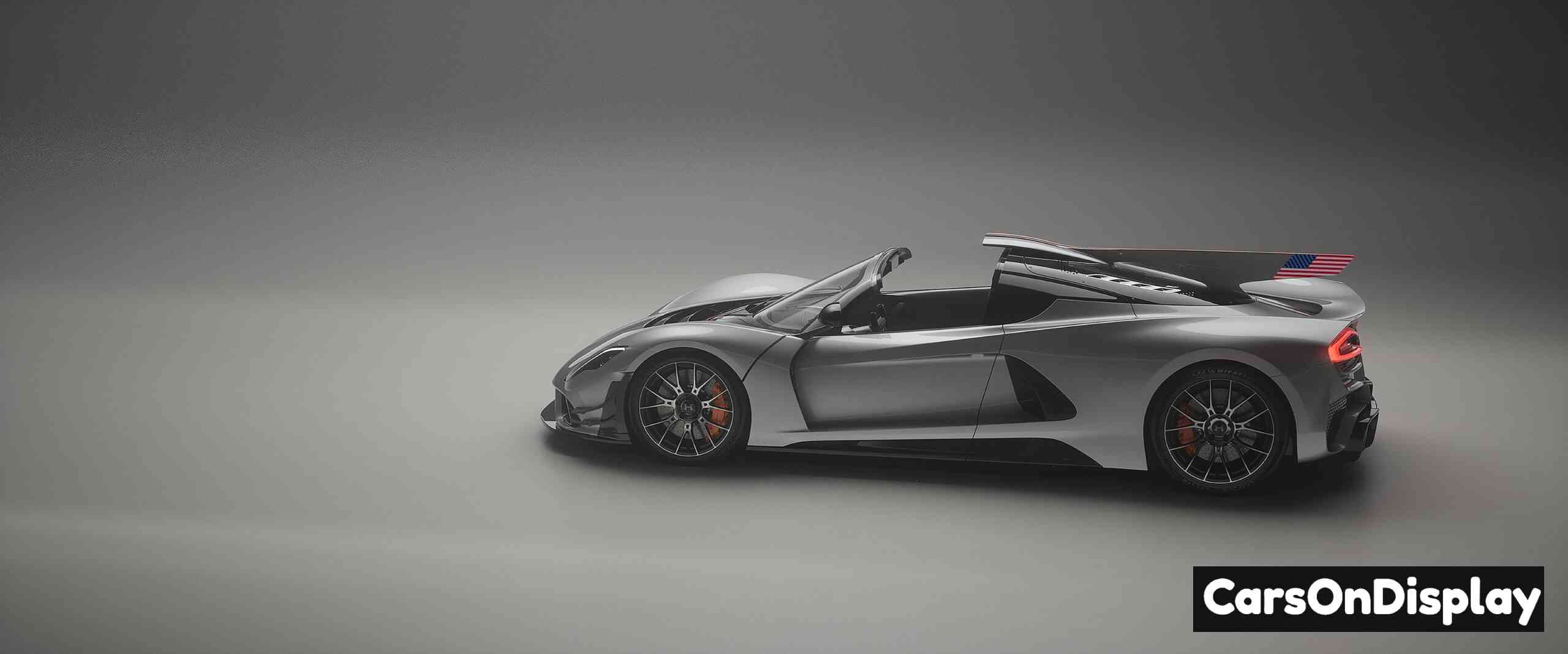

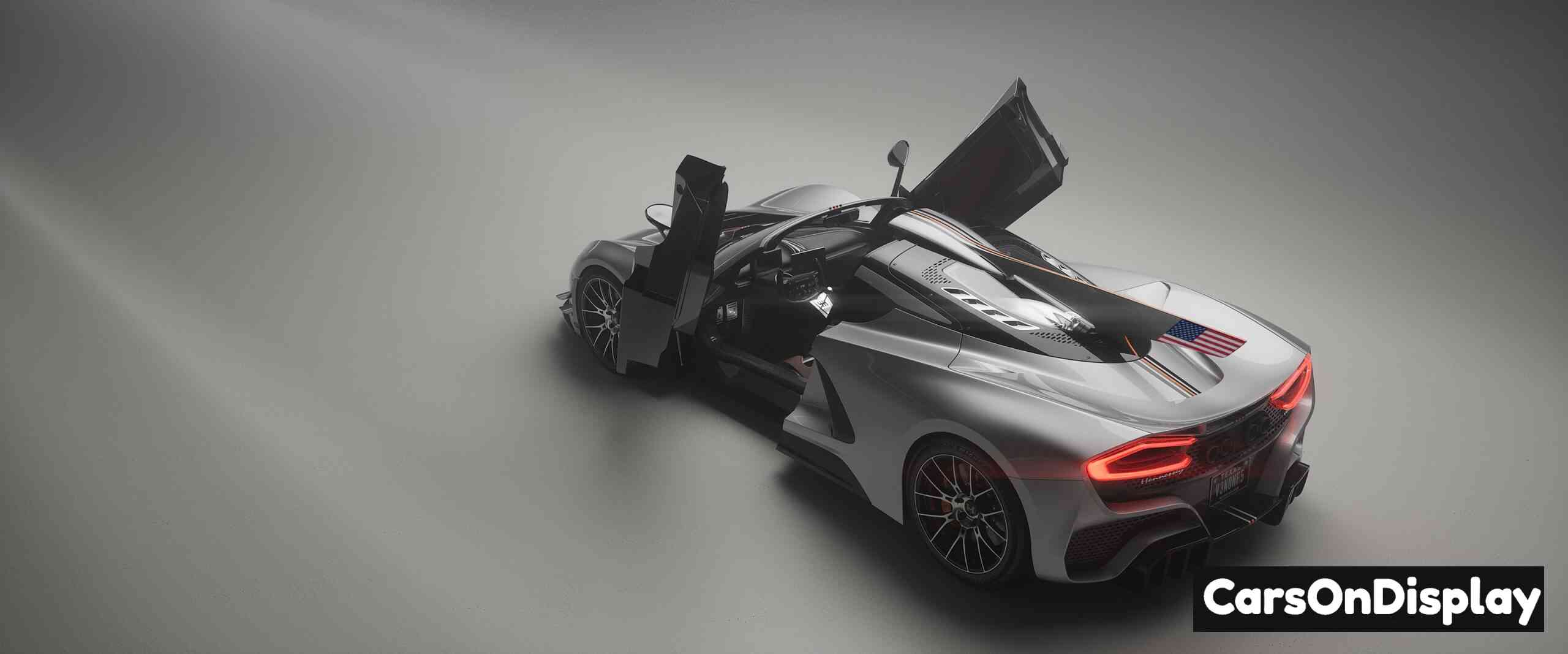

Picture Gallery

View More Pictures

Technical Specifications

Vehicle Type	Car
Fuel	Petrol
Engine Details	6.6 L Twin Turbo V8 Precision ball bearing twin turbochargers (76 mm billet aluminum compressor wheels) Valve train: Pushrod & Rocker Engine block: Cast iron Cylinder heads: Aluminum cylinder heads with canted titanium intake valves Connection rods: Forged steel Valves: Inconel exhaust valves with dual valve springs Total engine weight: 280kg (617 lbs) Power density: 277 hp/liter
Bore x Stroke	104.8mm x 95.3mm
Compression Ratio	10:1
Engine Lubrication	Dry sump
Clutch	Single clutch (240mm / 9.4-inch diameter)
Maximum Power	1817 hp @ 8,000 rpm (8,500 rpm F5 mode)
Maximum Torque	1617.4 Nm @ 5,000 rpm (8,500 rpm F5 mode)

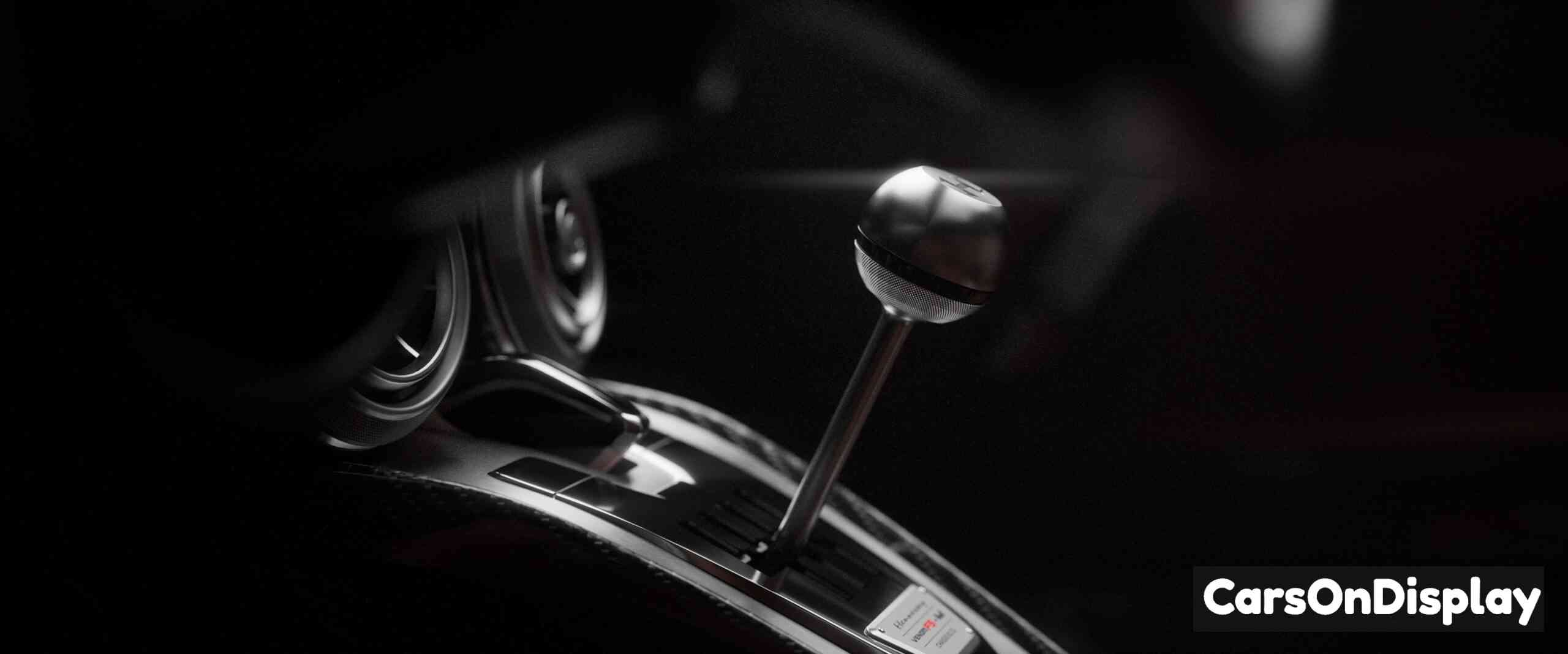

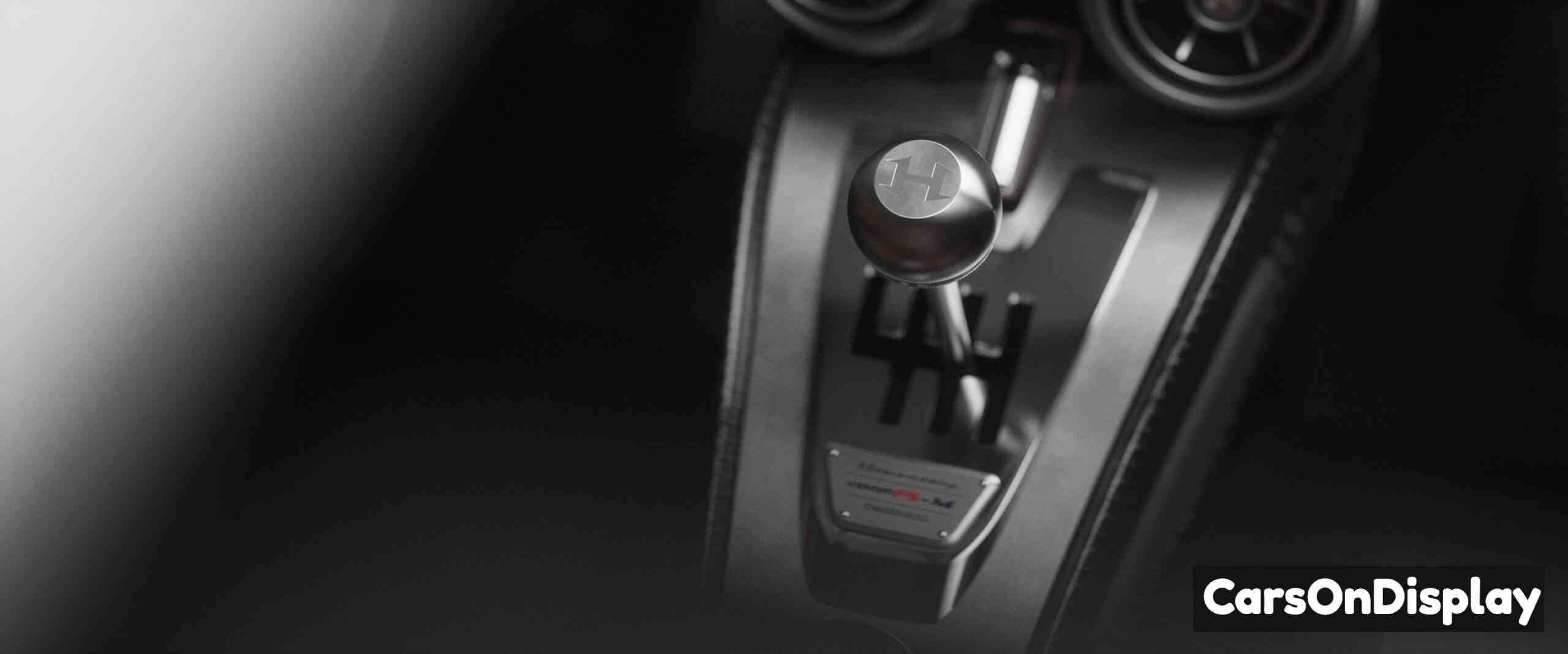

Transmission	6-Speed Manual
Riding Modes	Sport, Wet, Drag, Track & F5

Brakes
Front Brake	390 mm diameter x 34 mm carbon ceramic – bespoke 6-piston caliper
Rear Brake	390 mm diameter x 34 mm carbon ceramic – bespoke 4-piston caliper

Chassis and Suspension
Frame	Monocoque carbon fiber (86 kg)
Front Suspension	Double wishbone independent with fully adjustable coil over Penske dampers
Rear Suspension	Double wishbone independent with fully adjustable coil over Penske dampers

Tyres
Wheels / Rim	Forged aluminum alloy Front: 19-inch x 9.5-inch Rear: 20-inch x 12-inch
Front Tyre	265/35ZR19, Michelin Pilot Sport Cup 2
Rear Tyre	345/30ZR20, Michelin Pilot Sport Cup 2

Dimensions
Length	4,666 mm
Width	1960-1971 mm
Height	1,131 mm
Wheelbase	2,800 mm
Weight	1,360 kg
Kerb Weight	1,385 kg

Additional Details
Stainless steel Exhaust wheel Drag coefficient: 0.39 Cd Carbon fiber gloss (satin as an option) front splitter & rear diffusor Rack and pinion steering with electric power assistance Hubs and bearing carriers: Unitary hub with 5 studs Front/Rear track: 1,574 / 1,584 mm Carbon fiber with leather side grips steering wheel Machined aluminum pedals Ride height (adjustable) - Low: 75mm (front) 85mm (rear) - High: 140mm (front) 160mm (rear) – using HLS

Additional Details

Stainless steel Exhaust wheel
Drag coefficient: 0.39 Cd

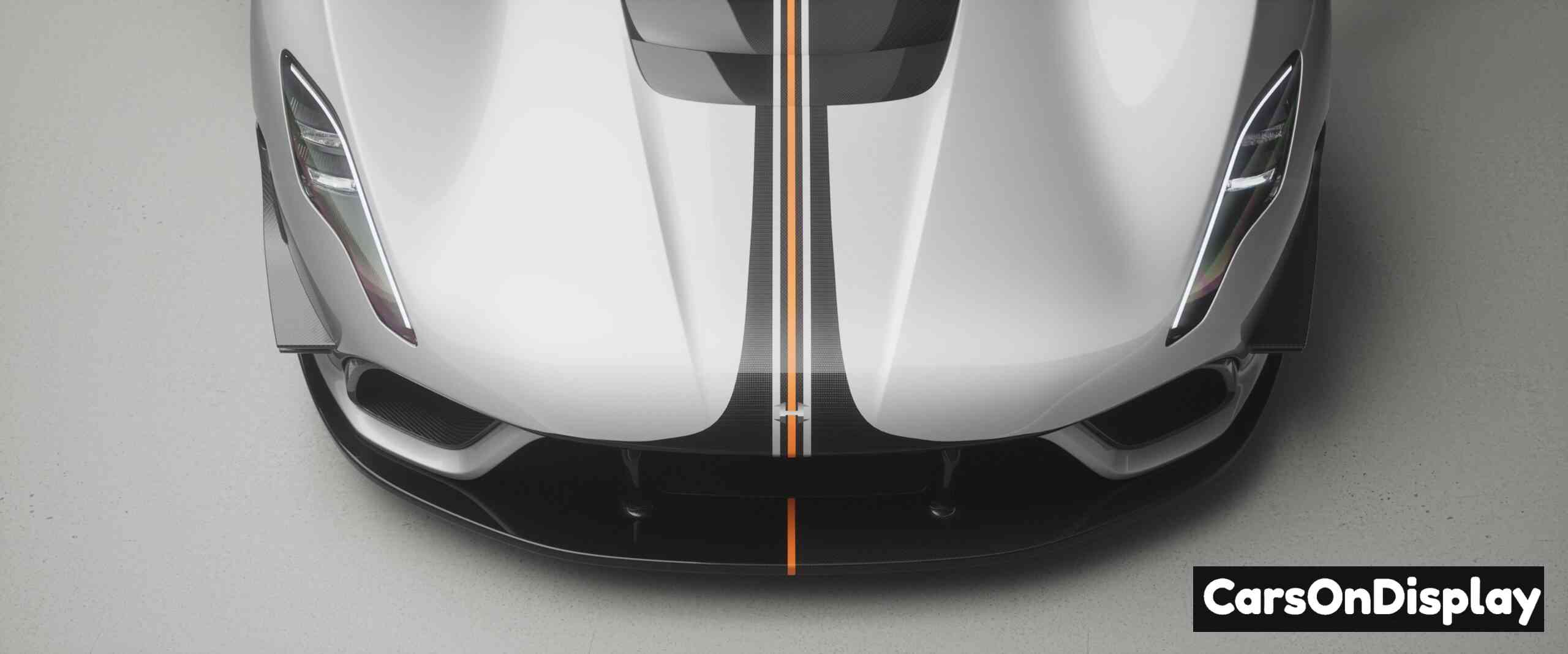

Carbon fiber gloss (satin as an option) front splitter & rear diffusor
Rack and pinion steering with electric power assistance
Hubs and bearing carriers: Unitary hub with 5 studs
Front/Rear track: 1,574 / 1,584 mm
Carbon fiber with leather side grips steering wheel
Machined aluminum pedals

Ride height (adjustable)
- Low: 75mm (front) 85mm (rear)
- High: 140mm (front) 160mm (rear) – using HLS
