The Hennessey Venom F5 Coupe is a hypercar renowned for its blistering speed and exceptional performance. Powered by a twin-turbocharged V8 engine, it features a remarkable 1,817 horsepower and a staggering 1,617 nm of torque. Its aerodynamic design, featuring a low drag coefficient and active aero elements, contributes to its exceptional performance and stability at high speeds.

Rate Hennessey Venom F5 Coupe:

4.0/5 (6 votes)

Write a Review

Hennessey Venom F5 Coupe Price

Not Available

Picture Gallery

View More Pictures

Features

Driver aids
- Traction control system with limited ESP
- Engine power limitation dependent on rear wheel traction
- Launch control

Hennessey Venom F5 Coupe

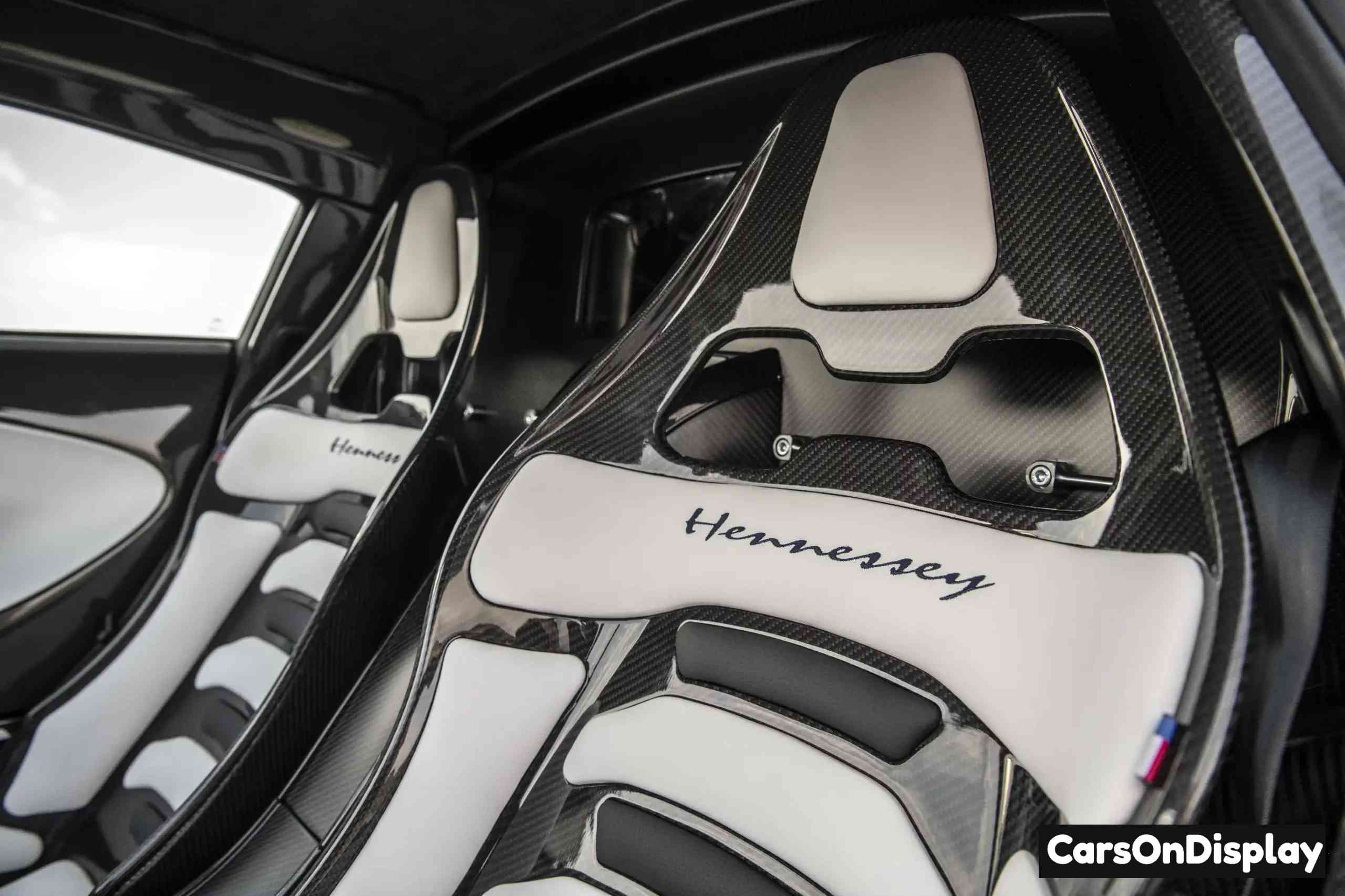

Carbon-fiber bucket seats are cushioned with leather-clad pads

Hennessey Venom F5 Coupe

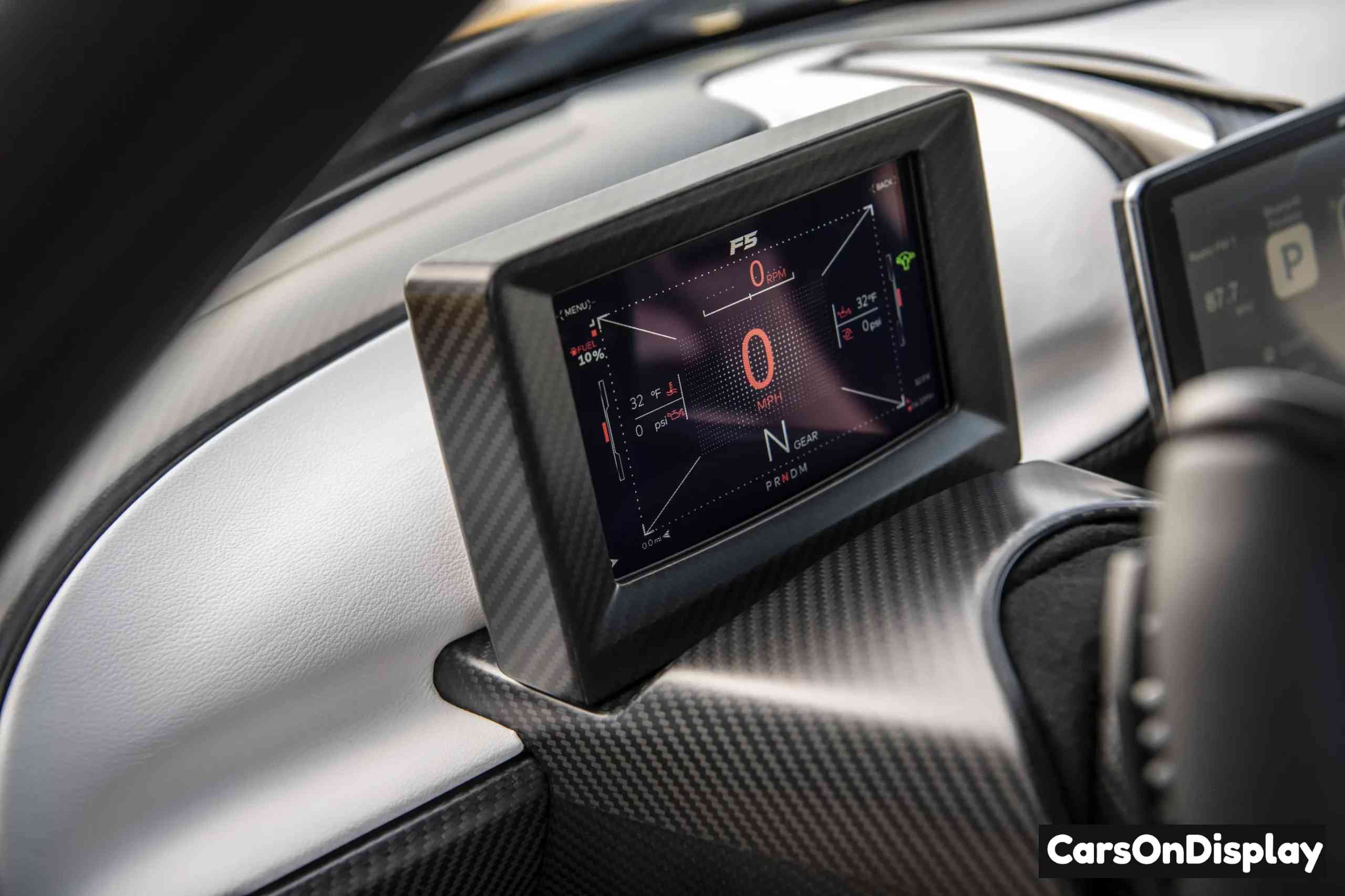

Digital instrument display

Hennessey Venom F5 Coupe

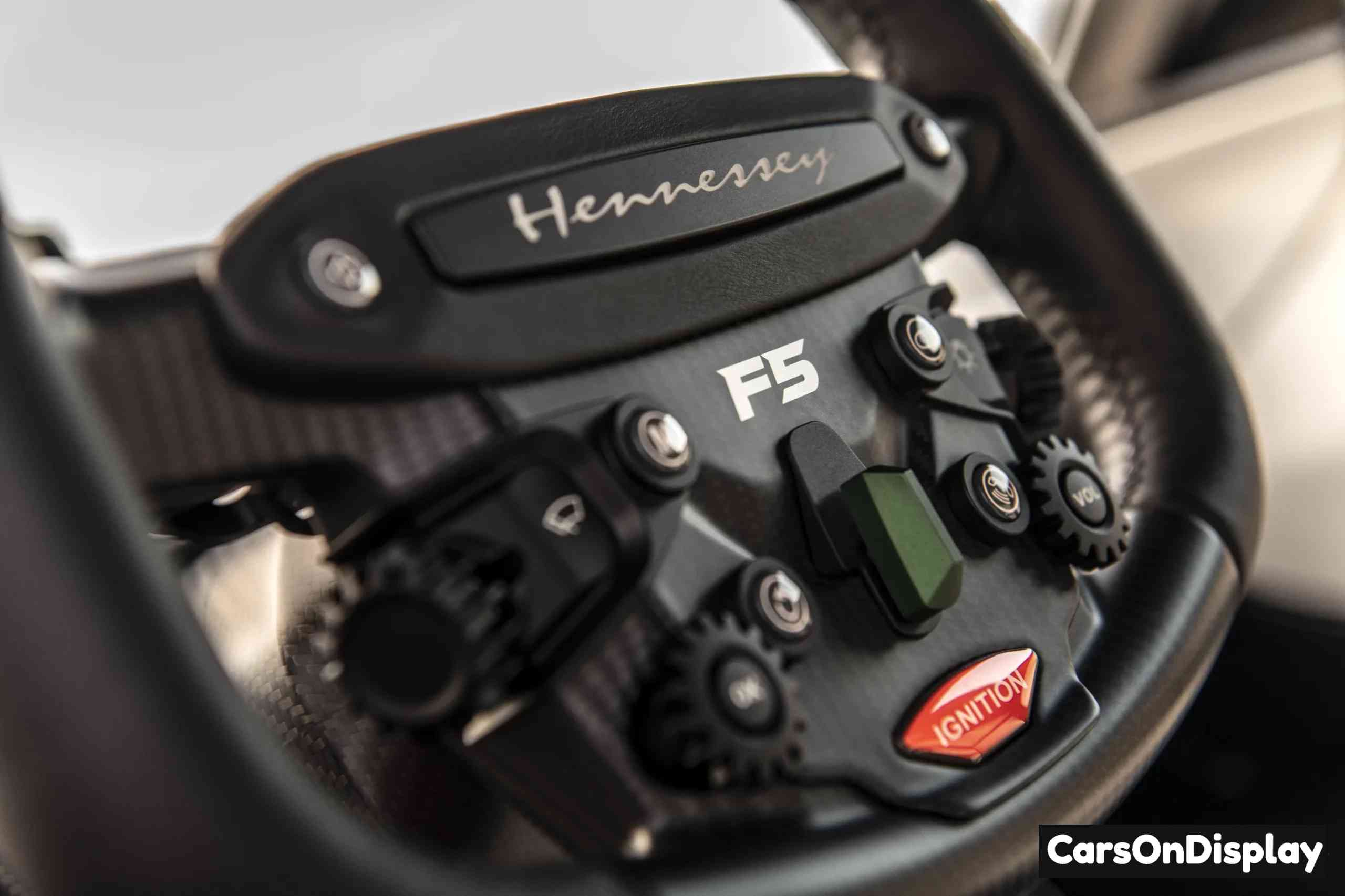

Ignition button

Hennessey Venom F5 Coupe

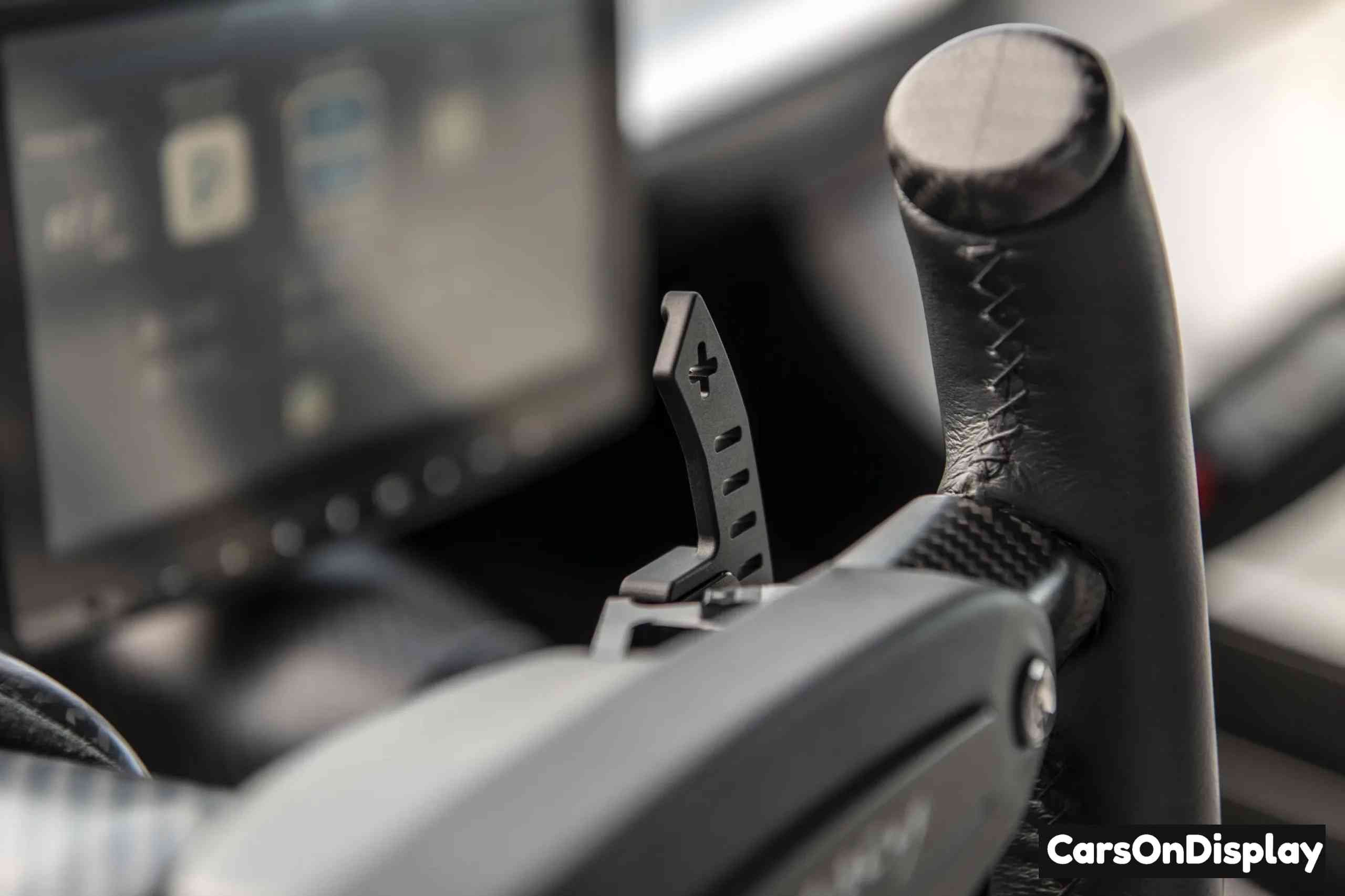

Aluminum paddle shift levers

Technical Specifications

Vehicle Type	Car
Fuel	Petrol
Engine Details	6.6 L Twin Turbo V8 Valve train: Pushrod & Rocker Engine block: Cast iron Cylinder heads: Aluminum cylinder heads with canted titanium intake valves Connection rods: Forged steel Valves: Inconel exhaust valves with dual valve springs Total engine weight: 280kg (617 lbs) Power density: 277 hp/liter
Bore x Stroke	104.8mm x 95.3mm
Compression Ratio	10:1
Engine Lubrication	Dry sump
Clutch	Single clutch (240mm / 9.4-inch diameter)
Maximum Power	1,817 hp @ 8,000 rpm (8,500 rpm F5 mode)
Maximum Torque	1,617 nm @ 5,000 rpm (8,500 rpm F5 mode)
Transmission	Semi-automatic with paddle shift
Riding Modes	5 vehicle mode selection (Sport, Wet, Drag, Track, F5)

Brakes
Front Brake	390 mm diameter x 34 mm carbon ceramic – bespoke 6-piston caliper
Rear Brake	390 mm diameter x 34 mm carbon ceramic – bespoke 4-piston caliper

Chassis and Suspension
Frame	Monocoque carbon fiber (86 kg)
Front Suspension	Double wishbone independent with fully adjustable coil over Penske dampers
Rear Suspension	Double wishbone independent with fully adjustable coil over Penske dampers

Tyres
Wheels / Rim	Forged aluminum alloy Front: 19-inch x 9.5-inch Rear: 20-inch x 12-inch
Front Tyre	265/35ZR19, Michelin Pilot Sport Cup 2
Rear Tyre	345/30ZR20, Michelin Pilot Sport Cup 2

Dimensions
Length	4,666 mm
Width	1960-1971 mm
Height	1,131 mm
Wheelbase	2,800 mm
Weight	1,360 kg
Kerb Weight	1,385 kg

Additional Details
Turbocharger: Precision ball bearing twin turbochargers (76 mm billet aluminum compressor wheels) Exhaust wheel: Stainless steel Drag coefficient: 0.39 Cd Front splitter: Carbon fiber gloss (satin as an option) Rear diffusor: Carbon fiber gloss (satin as an option) Aero: Track pack coming soon Steering: Rack and pinion with electric power assistance Hubs and bearing carriers: Unitary hub with 5 studs Steering: Rack and pinion with electric power assistance Front track: 1,574 mm Rear track: 1,584 mm Steering wheel: Carbon fiber with leather side grips Pedals: machined aluminum Gear change: Paddle-shift with fully automatic or manual functionality Ride height (adjustable) - Low: 75mm (front) 85mm (rear) - High: 140mm (front) 160mm (rear) – using HLS

Additional Details

Turbocharger: Precision ball bearing twin turbochargers (76 mm billet aluminum compressor wheels)
Exhaust wheel: Stainless steel
Drag coefficient: 0.39 Cd
Front splitter: Carbon fiber gloss (satin as an option)
Rear diffusor: Carbon fiber gloss (satin as an option)
Aero: Track pack coming soon
Steering: Rack and pinion with electric power assistance
Hubs and bearing carriers: Unitary hub with 5 studs
Steering: Rack and pinion with electric power assistance
Front track: 1,574 mm
Rear track: 1,584 mm
Steering wheel: Carbon fiber with leather side grips
Pedals: machined aluminum
Gear change: Paddle-shift with fully automatic or manual functionality

Ride height (adjustable)
- Low: 75mm (front) 85mm (rear)
- High: 140mm (front) 160mm (rear) – using HLS
